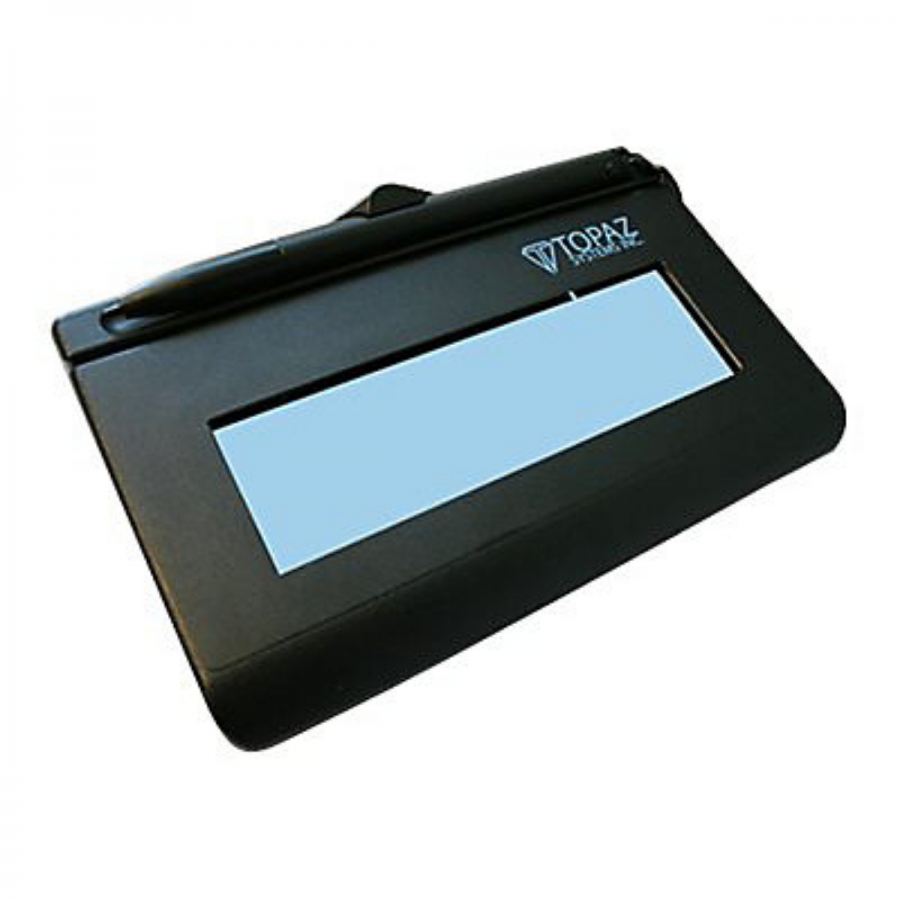

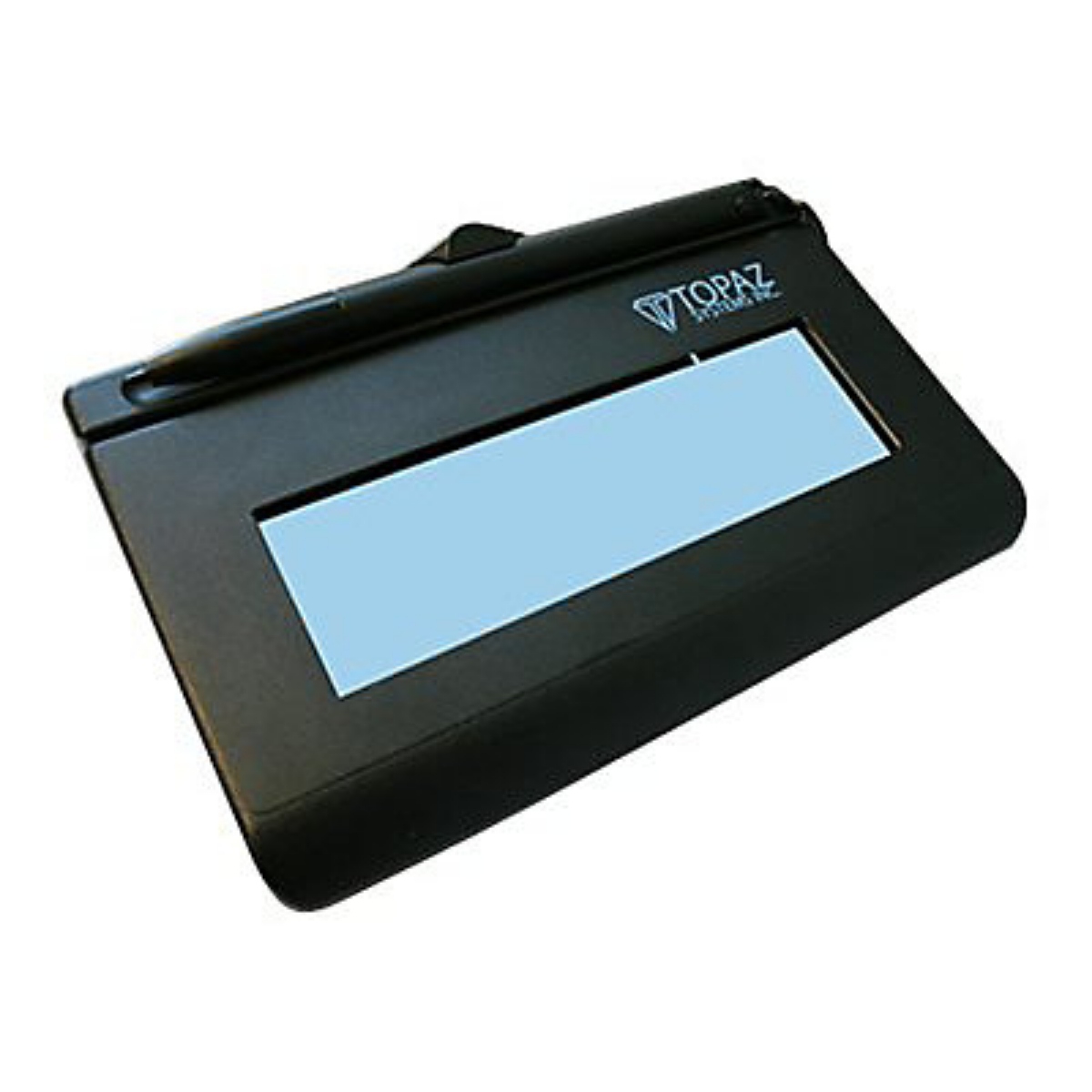

Topaz SigLite LCD Backlit 1x5 – Virtual Serial via USB

SigLite LCD Backlit 1x5 – Virtual Serial via USB (T-LBK460-BSB-R) is a compact, pressure-sensitive electronic signature pad designed for reliable, cost-effective signature capture in environments where space, performance, and software compatibility are critical. It combines the trusted biometric and forensic capture capabilities of the SignatureGem 1x5 platform with a durable third-generation touchpad sensor and patented passive stylus. This design delivers accurate electronic signatures without the complexity or cost of an active electromagnetic pen system.

Integrated LCD Display
Unlike non-display models, the LCD Backlit version features an illuminated screen that allows users to see their signature appear as “electronic ink” in real time while signing.

High-Quality Biometric Capture
The third-generation touchpad captures digital, binary pressure data from the stylus tip. Signature data can be saved in forensic-quality .SIG format for examination and authentication using compatible Topaz software. The capture technology exceeds industry standards and supports programmable PPI for secure workflow integration.

What BSB Means – Virtual Serial via USB
The BSB designation stands for Virtual Serial via USB. The device physically connects through USB but communicates with the computer as if it were a traditional serial (COM) port device. When installed, the system creates a virtual COM port that serial-based applications can recognize without modification. This configuration is especially useful for organizations that:

• Use legacy software designed for serial signature pads
• Require stable COM-port communication for custom integrations
• Operate in virtualized or remote desktop environments
• Need compatibility with applications that do not support standard USB HID modes
